eVTOL application

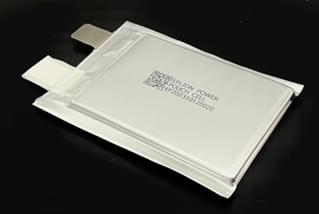

10Ah Pouch Cell
Energy Density > 320 Wh/kg
Power Density > 15C Discharge
Non-Flammable over 200°C
5min charging from 0 to 75% SOC
80% Capacity retention @ -30°C
21700 Cylindrical Cell
Energy Density > 290 Wh/kg
Power Density > 15C Discharge
Non-Flammable over 200°C
5min charging from 0 to 75% SOC
80% Capacity retention @ -30°C

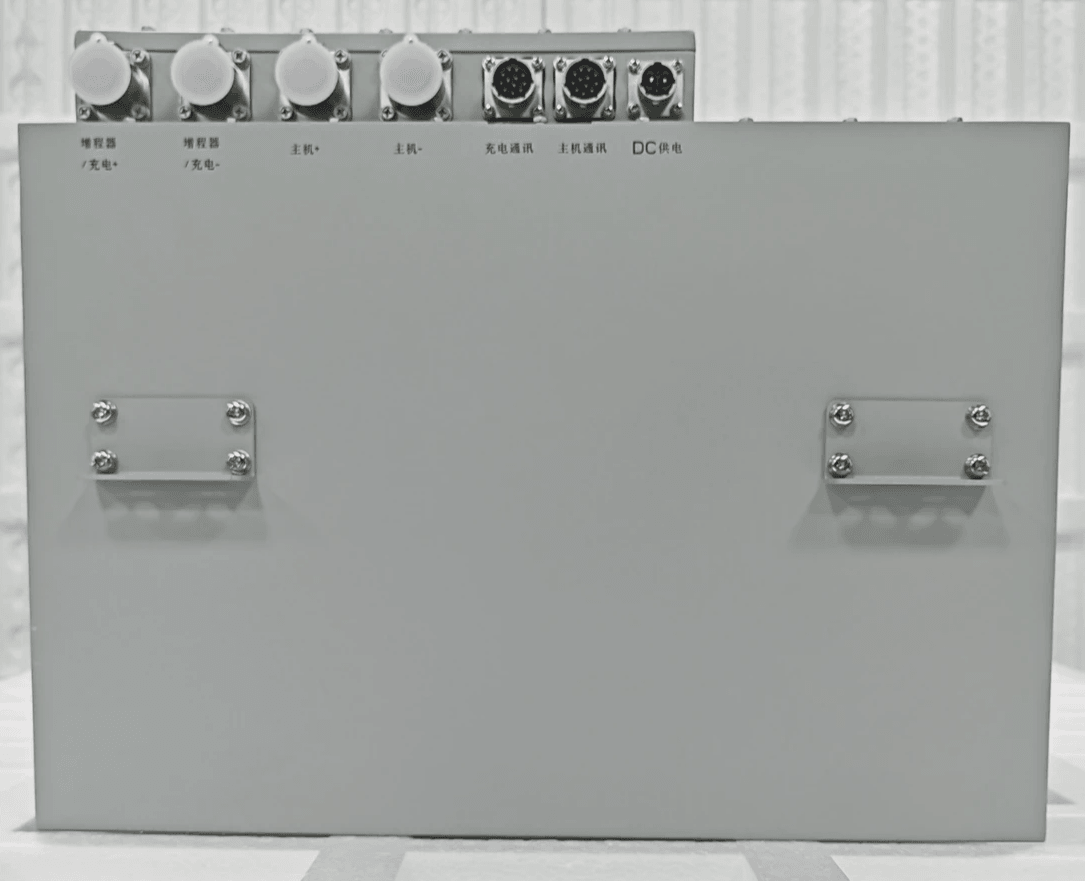

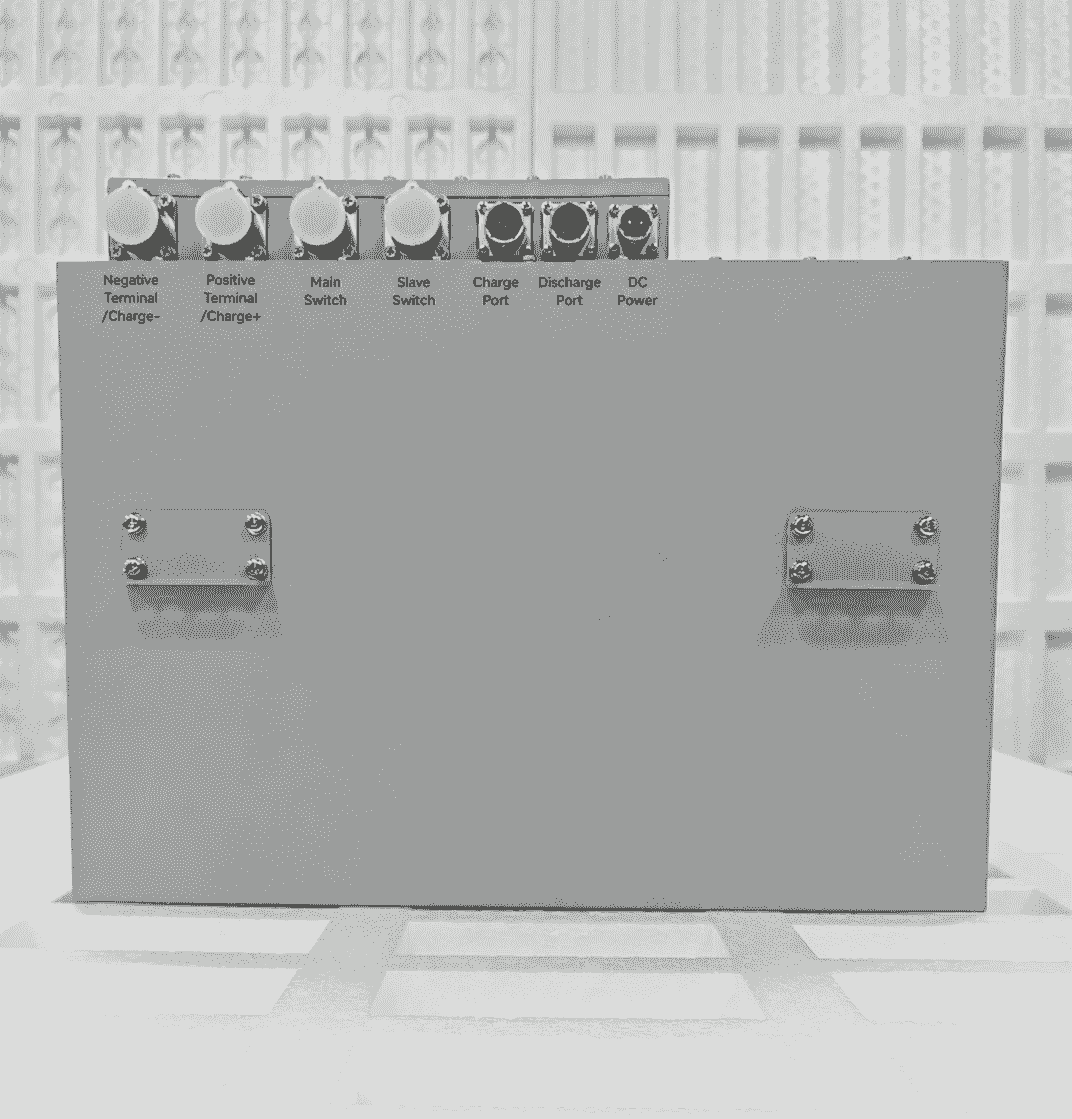

400V platform Hybrid Battery Pack-4.2Kwh
Specific Energy: 4.2Kwh
Configuration: 106S1P
Continuous discharge current: 180A
Maximum dicharge current: 330A
Voltage window: 292~445V
Fast charging(0~80%SOC): ~10min(5C)
Cycle Life (1C/1C) @ 25°C: 1000cycles
Weight: 30Kg
Dimension(T*W*H): 250*507*402mm
Protection waterproof: IP65
