Power the world with eFlion technology!

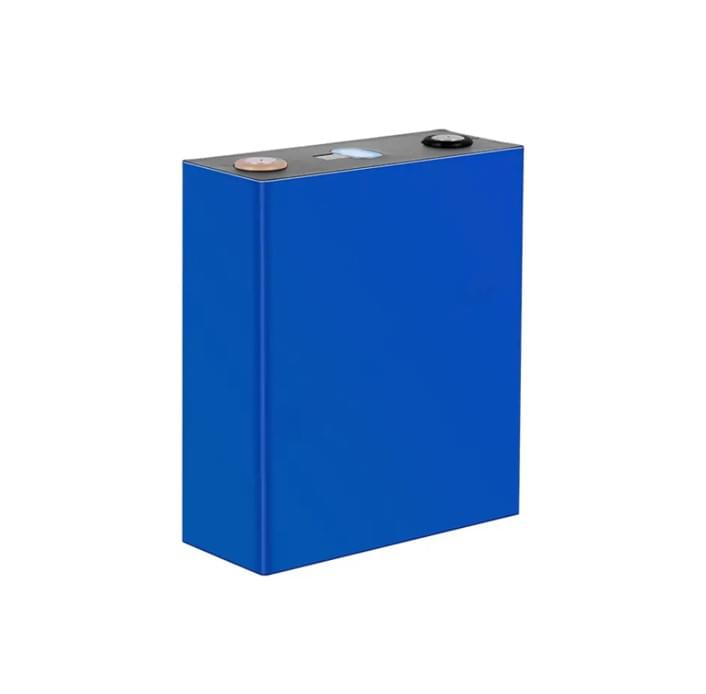

Chemistry: LiFePO4/Graphite

Dimension: 173*72*204mm(L*W*H)

Nominal Capacity: 314Ah@0.5P 25°C

Minimum Capacity: 313Ah@0.5P 25°C

Rated Charge/Discharge Power: 0.5P

Charge/Discharge Energy Efficiency: 94.5%@0.5P

Voltage window: 2.5-3.65V

Working temperature: -20℃~55℃

Cycle life: ≥8000@70%SOH, 25±3°C

Relevant Certifications: GB/T36276, UL1973, UL9540A, IEC62619, IEC62620, UN38.3

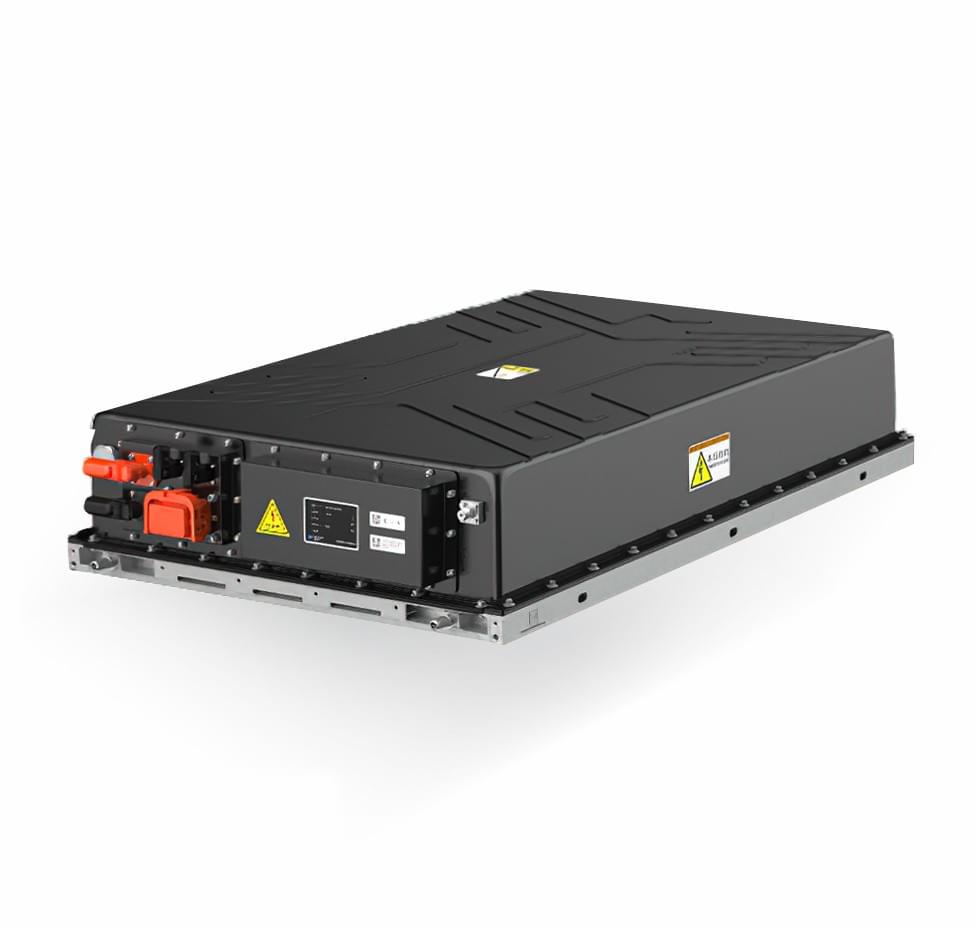

Configuration: 1P52S

Dimensions: 1128*800*240mm(L*W*H)

Nominal Capacity: 300Ah@0.5P 25°C

Nominal Voltage: 166.4V

Voltage Window: 145.6~187.2V

Nominal Energy: 49.92kWh

Rated Charge/Discharge Power: 0.5P

Charge/Discharge Energy Efficiency: 94.5%@0.5P

Thermal Management: Liquid cooling

Operating Temperature Range
: -30℃~55℃

Storage Temperature Range: -30℃~55℃

Fire Protection System: Pack-level fire protection (perfluorohexane)

Protection Level: IP67

Weight: 336kg±2kg

Certification Standards: GB/T36276, UL1973, UL9540A, IEC62619, IEC62477-1, UN38.3

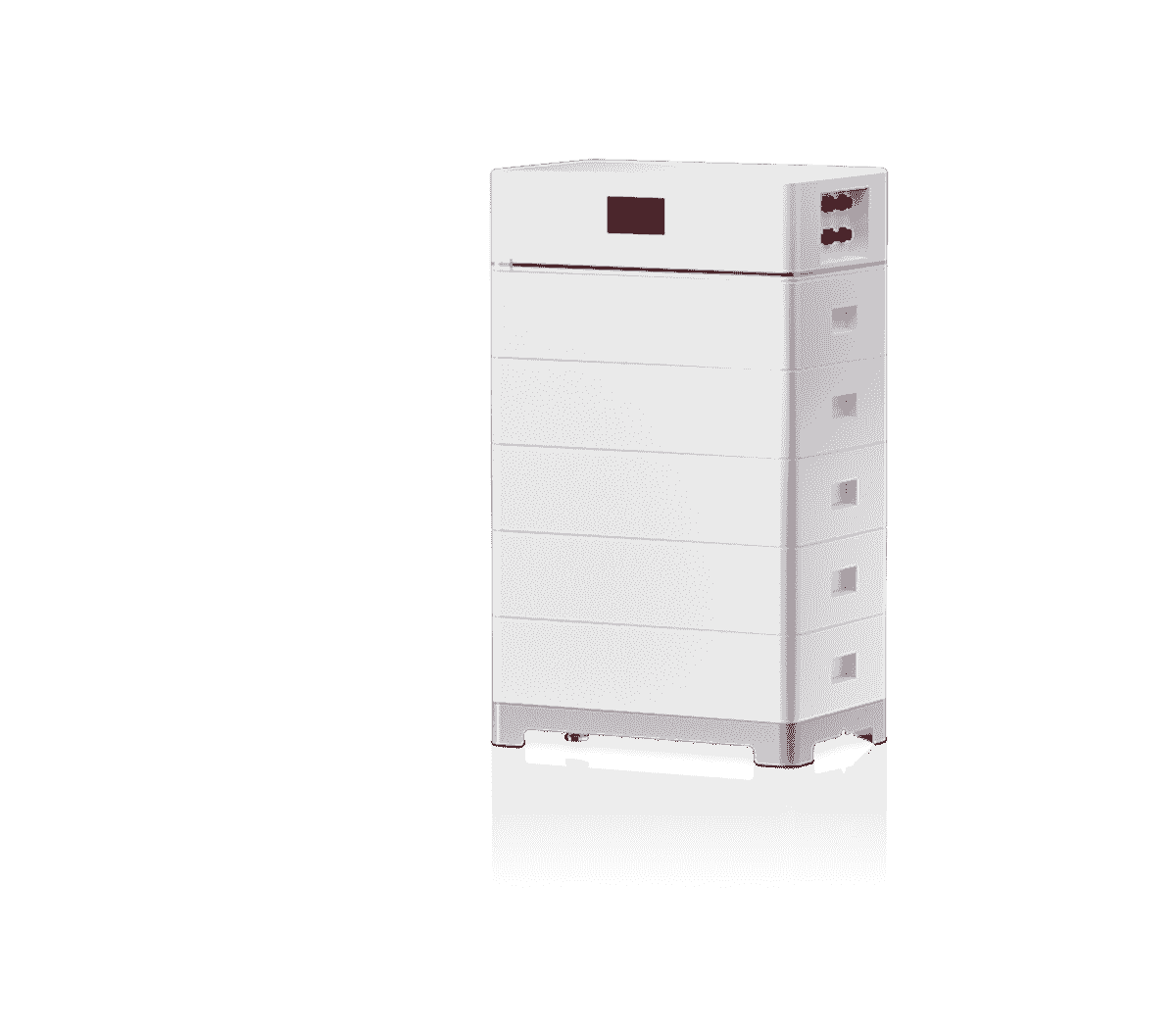

Battery Module Quantity: 7

Initial Energy Capacity: 32.2kWh

Nominal Voltage: 448V

Nominal Power: 22.4kW

Peak Power: 32.2kW, 30S

Dimension: 600*380*1360mm(W*D*H)

Product Weight: 360kg

Protection Level: IP55

Installation Mode: Floor-mounted

Display: State of Charge (SOC), status display

Communication: RS485, CAN

Operating Temperature: -20℃~55℃

Operating Humidity: 5% ~95% RH

Operating Altitude: ≤4000m

Certification Standards: UL1973, IEC62619, UN38.3

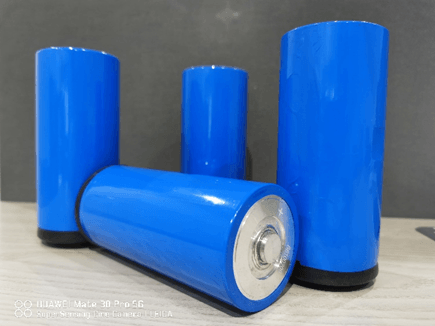

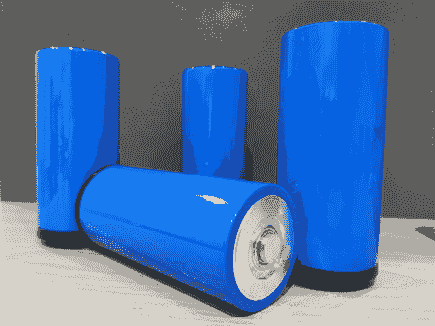

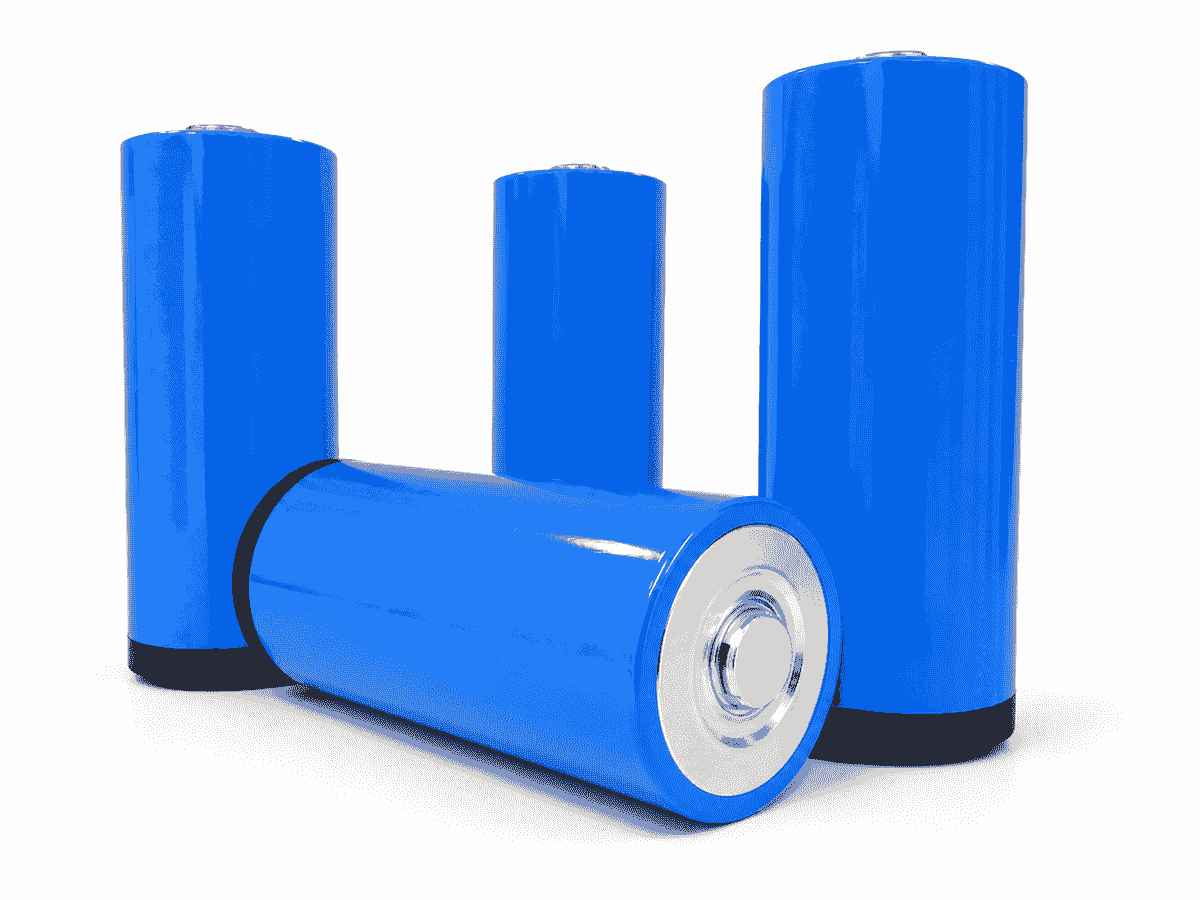

Rated capacity: 43000F (18Ah) ±5%
Upper Voltage Limit: 4.2V

Lower Voltage Limit: 2.5V
DC Internal Resistance(10 ms):

≤0.6 mΩ
Standard Charging Current: 54A (3C)
Fast Charging Current: 180A (10C)
Rated Discharge Current: 54A (3C)
Maximum Continuous Discharge Current: 540A (30C)
Maximum Discharge Duration: 120 s
Maximum Temperature Rise: 50 ± 5°C Safety: GB/T 31485-2015 “Safety Requirements and Test Methods for Traction Battery for Electric Vehicles”
Charge/Discharge Temperature Range: -40 to 85°C
Storage Temperature Range:

-40 to 55°C
Fast-Charge Cycle Life (@25 ± 2°C, forced cooling): ≥30,000 cycles (3C)
Slow-Charge Cycle Life: ≥50,000 cycles (1C)
Weight: ≤850 g
Dimensions (Diameter D × Height H):

Φ60 mm × 140 mm
